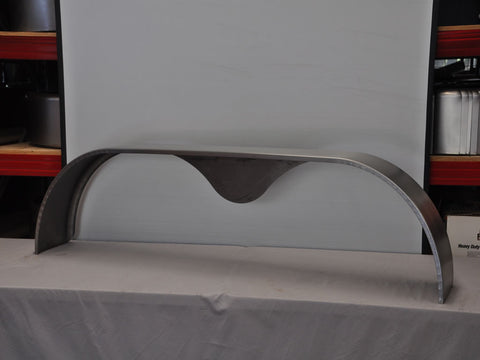

TTSR1072 - 10" by 72" Single Radius Tandem Teardrop Mild Steel Guard

by: Mr Mudguard

New round cold rolled fenders / guards Made from 16 gauge bright mild steel

Flat Top: Fenders are flat across the top

Single Radius: When the fender has a rolled edge on the outside of at least 30mm and a flat lip of 20mm on the inside

Use: Car, boat, utility, custom, enclosed trailers (axle spread around 37 Inches / 950mm)

Part Number: TTSR 10 72

Dimensions:


Width – 10 Inches / 254 mm
Length – 72 Inches / 1829 mm
Height – 17 Inches / 432 mm
Stretch Out – 92 Inches / 2337 mm
Gauge – 16 / 1.59 mm USG
Weight – 8.5 Kg

*Stretch out is the distance from the front lip of the guard over the top around to the back lip (circumference)
