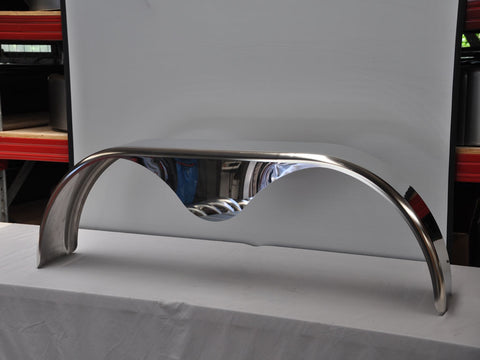

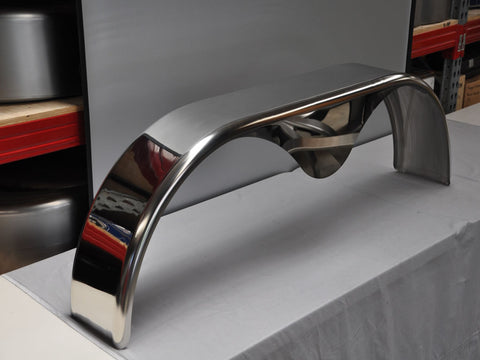

TTDR1064SS - 10" by 64" Double Radius Tandem Teardrop Axle Polished Stainless Guard

by: Mr Mudguard

New round cold rolled fenders / guards Made from 14 gauge mirror polished stainless steel

These are #8 mirror polished stainless steel

Double Radius: When the fenders have a radius on both inner and outer edges of at least 30mm up to 45mm

Flat Top: Fenders are flat across the top

Use: Custom enclosed, custom utility, custom race boat, custom race trailers. (axle spread around 31 inches / 800mm)

Part Number: TTDR 10 64SS


Width – 10 Inches / 254 mm
Length – 64 Inches / 1626 mm
Height – 17 Inches / 432 mm
Stretch Out – 84 Inches / 2133 mm
Gauge – 14 / 1.98 mm USG
Weight – 9.5 Kg

*Stretch out is the distance from the front lip of the guard over the top around to the back lip (circumference)

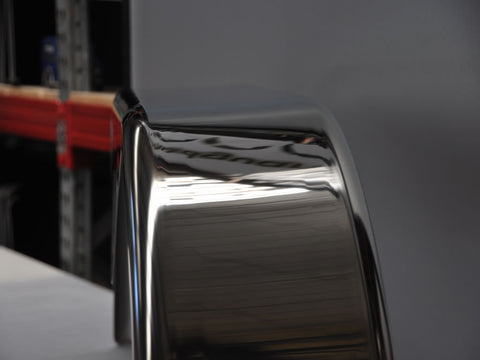

Both the outer and inner edges have a 1.5 inch radius
