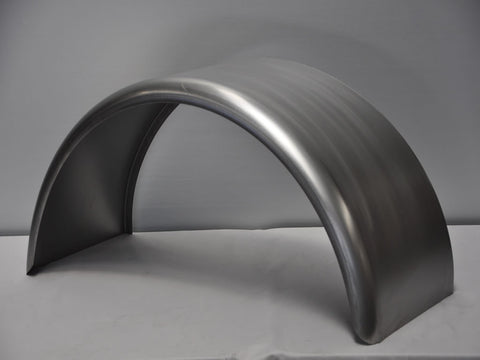

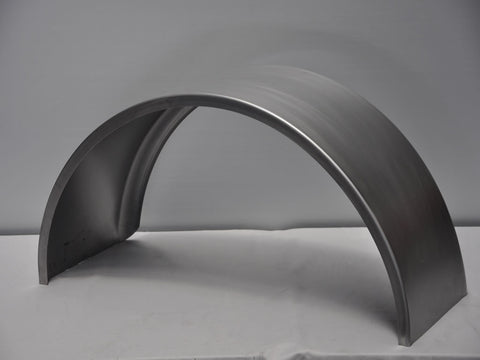

SR1332 - 13" by 32" Single Radius Single Axle Mild Steel Guard

by: Mr Mudguard

New round cold rolled fenders / guards Made from 14 gauge bright mild steel

Flat Top: Fenders are flat across the top

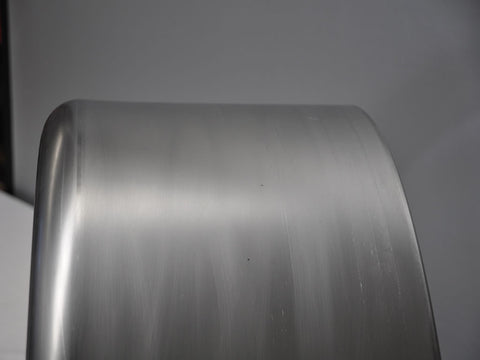

Single Radius: When the fender has a rolled edge on the outside of at least 30mm and a flat lip of 20mm on the inside

Use: Drag car tubs, one tonner trays, custom street, trailers, etc

Part Number: SR 13 32

Dimensions:


Width – 13 Inches / 330 mm
Length – 32 Inches / 813 mm
Height – 16 Inches / 406 mm
Stretch Out – 50 Inches / 1270 mm
Gauge – 14 / 1.98 mm USG
Weight – 7 Kg

*Stretch out is the distance from the front lip of the guard over the top around to the back lip (circumference)
