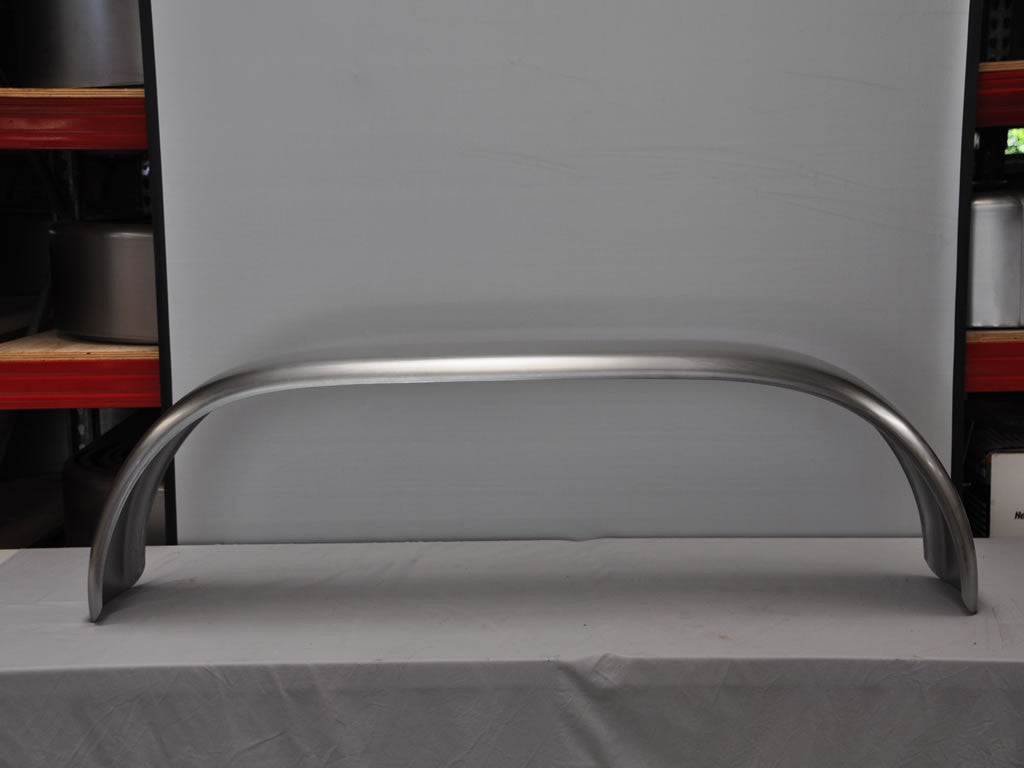

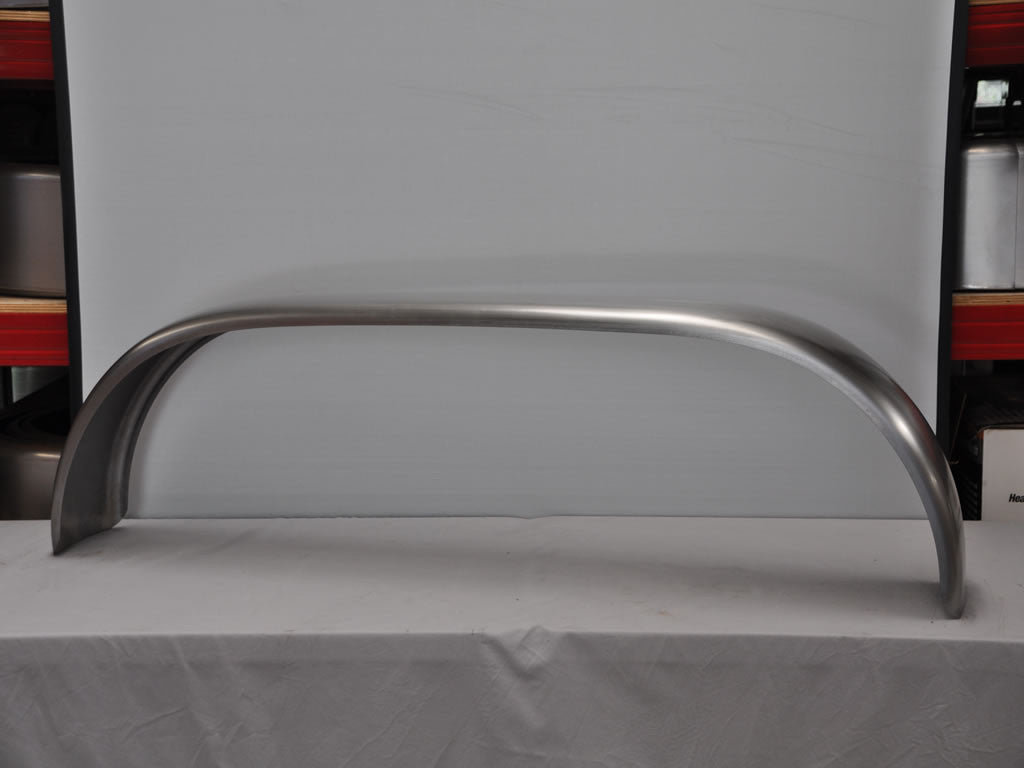

TSDR1164FT - 11" by 64" Double Radius Tandem Straight Axle Mild Steel Guard

by: Mr Mudguard

New round cold rolled fenders / guards Made from 14 gauge bright mild steel

Flat Top: Fenders are flat across the top

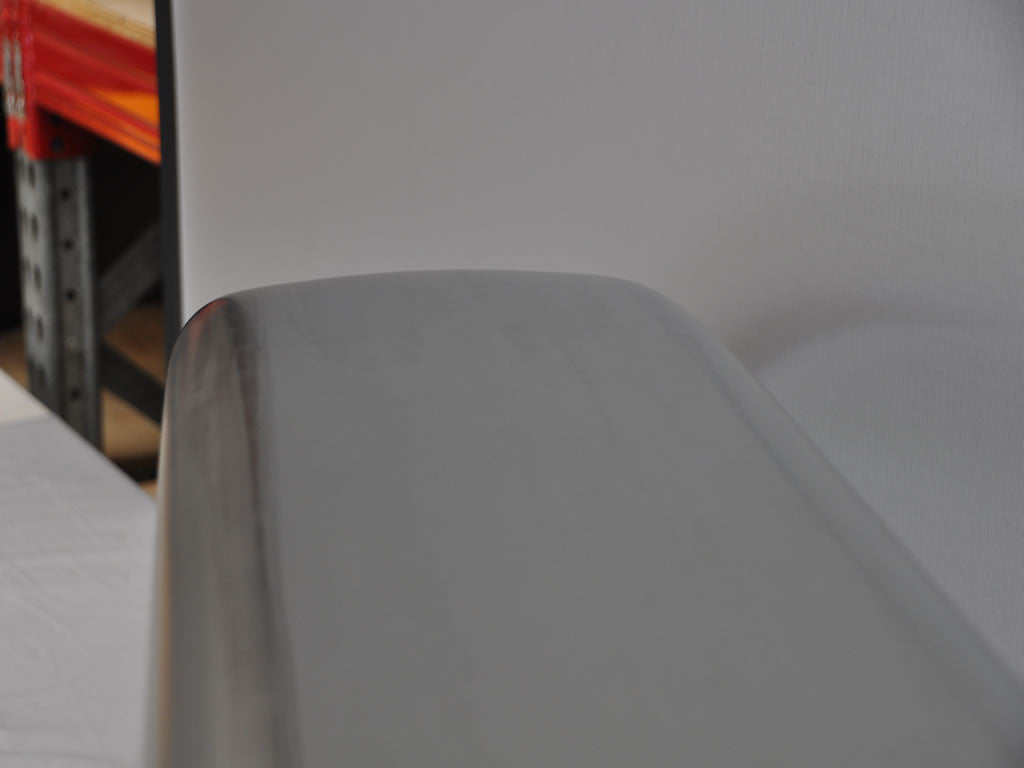

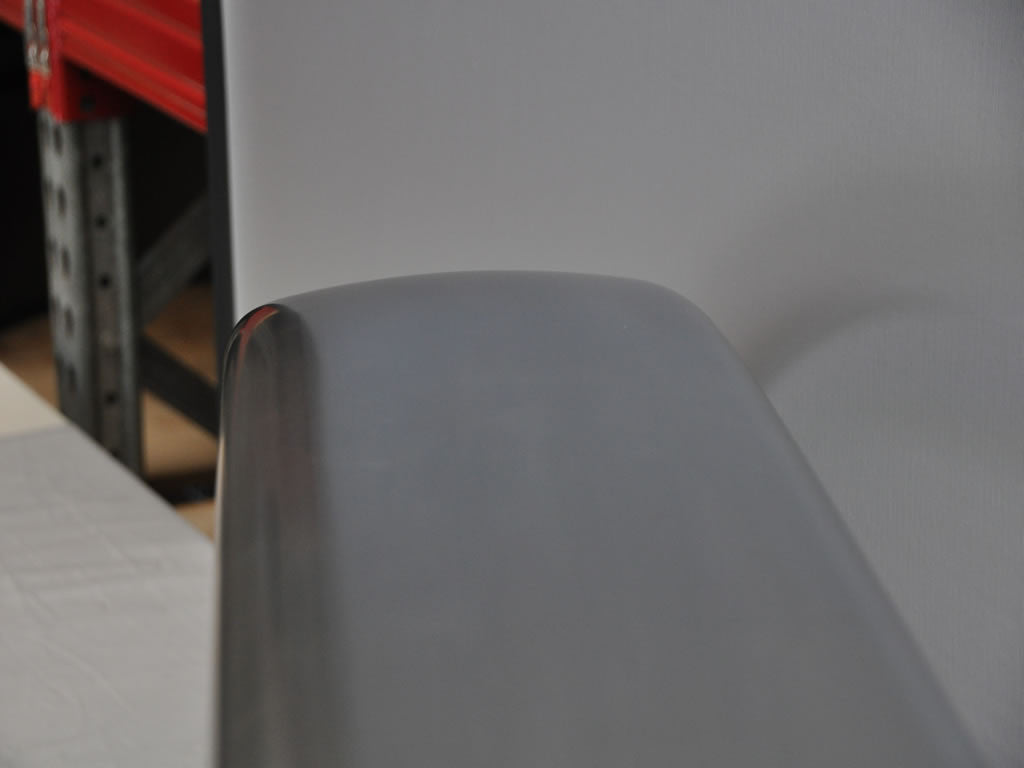

Double Radius: When the fenders have a radius on both inner and outer edges of at least 30mm up to 45mm

Use: Car, boat, utility, custom, enclosed trailers (axle spread around 33 Inches / 850mm)

Part Number: TSDR 11 64 FT

Dimensions:


Width – 11 Inches / 279 mm
Length – 64 Inches / 1626 mm
Height – 17 Inches / 432 mm
Stretch Out – 84 Inches / 2134 mm
Gauge – 14 / 1.98 mm USG
Weight – 9.5 Kg

*Stretch out is the distance from the front lip of the guard over the top around to the back lip (circumference)
